VERY SIMPLE CONCEPT TO CLOSE THE
PACKS
The PET pack lid cannot be closed in the
packing lane of the egg grader. It is too light and without
any hook point which keeps it closed. The pack is moved through
a contiflow system to a Flexiflow
conveyor and then is sent into the Easyseal. The initial part
of the Easyseal conveyor is equipped with a bent guide which
gently bends the lid till it is completely laying over the
bottom part of the pack. From this position the packs goes

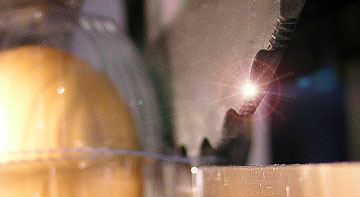

under a pressure wheel (see picture above) where the top lid
and the bottom part borders are melt together. It
is melting, not glueing, which means that
the seal is the strongest possible and can never be opened
unless peeling the strip with pre-perforated line.
EASY AND 100% FLEXIBLE
Because of the packs enter along the lenght and the
sealing is controlled by means of a beam sensor, there
is nothing to adapt or change when changing the pack format.
Either we are sealing 4-egg packs or 6 or 12 or 10 or 3x4,
the machine will automatically adjust the height of the pusher
for sealing. You can also mix the packs together in the same
automatic line!
The machine will never stop, break nor require maintenance.
It is based on a turning belt connected to a continuous-power
motor which turns at constant speed and a horn which generates
ultra-sonics when the pack is going through its turning pressure
wheel.
TECHNICAL
FEATURES
Capacity: up to 45.000 eggs/h
Dimensions (LxWxH): 1,2 x 0,5 x 0,6-1,15
Material: PET plastic (polyethylene terephthalate)
Thickness: from 0,20 to 0,50 mm.
|
